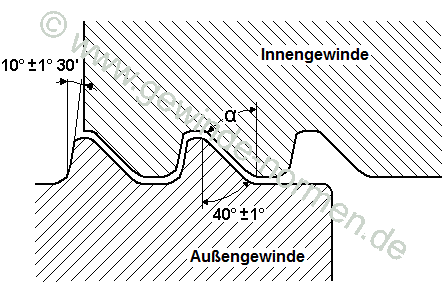

| Gewinde Kennung |
Bolzen | Mutter | Steigung mm |
Winkel ° α |
||
| Außendurch- messer mm |
Kerndurch- messer mm |
Außendurch- messer mm |
Kerndurch- messer mm |
|||
| KS 10 | 10,0 | 8,0 | 10,1 | 8,1 | 2,0 | 40° |
| (KS 12) | 12,0 | 10,0 | 12,1 | 10,1 | 2,0 | 40° |
| KS 14 | 14,0 | 11,5 | 14,1 | 11,6 | 2,5 | 40° |
| (KS 16) | 16,0 | 13,5 | 16,1 | 13,6 | 2,5 | 40° |
| KS 18 | 18,0 | 15,0 | 18,1 | 15,1 | 3,0 | 40° |
| (KS 20) | 20,0 | 17,0 | 20,1 | 17,1 | 3,0 | 40° |
| KS 22 | 22,0 | 19,0 | 22,1 | 19,1 | 3,0 | 40° |
| KS (24) | 24,0 | 21,0 | 14,1 | 21,1 | 3,0 | 30° |
| KS 25 | 25,0 | 22,0 | 25,1 | 22,1 | 3,0 | 30° |
| KS (26) | 26,0 | 23,0 | 26,1 | 23,1 | 3,0 | 30° |
| KS 28 | 28,0 | 25,0 | 28,1 | 25,1 | 3,0 | 30° |
| KS (30) | 30,0 | 27,0 | 30,1 | 27,1 | 3,0 | 30° |
| KS 32 | 32,0 | 29,0 | 32,1 | 29,1 | 3,0 | 30° |
| KS (36) | 36,0 | 33,0 | 36,1 | 33,1 | 3,0 | 30° |
| KS 40 | 40,0 | 37,0 | 40,1 | 37,1 | 3,0 | 30° |
| KS (45) | 45,0 | 41,0 | 45,1 | 41,1 | 4,0 | 30° |
| KS 50 | 50,0 | 46,0 | 50,1 | 46,1 | 4,0 | 30° |
| KS 60 | 60,0 | 54,0 | 60,3 | 54,3 | 6,0 | 30° |

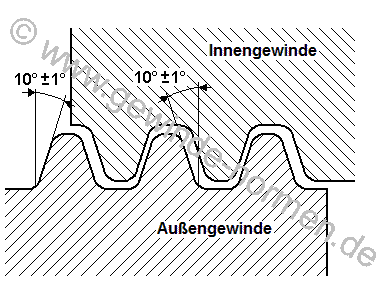

| Gewinde Kennung |
Bolzen | Mutter | Steigung mm |
||
| Außendurch- messer mm |
Kerndurch- messer mm |
Außendurch- messer mm |
Kerndurch- messer mm |
||
| KT 10 | 10,0 | 8,0 | 10,1 | 8,1 | 2,0 |
| (KT 12) | 12,0 | 10,0 | 12,1 | 10,1 | 2,0 |
| KT 14 | 14,0 | 11,5 | 14,1 | 11,6 | 2,5 |
| (KT 16) | 16,0 | 13,5 | 16,1 | 13,6 | 2,5 |
| KT 18 | 18,0 | 15,0 | 18,1 | 15,1 | 3,0 |
| (KT 20) | 20,0 | 17,0 | 20,1 | 17,1 | 3,0 |
| KT 22 | 22,0 | 19,0 | 22,1 | 19,1 | 3,0 |
| KT (24) | 24,0 | 21,0 | 14,1 | 21,1 | 3,0 |
| KT 25 | 25,0 | 22,0 | 25,1 | 22,1 | 3,0 |
| KT (26) | 26,0 | 23,0 | 26,1 | 23,1 | 3,0 |
| KT 28 | 28,0 | 25,0 | 28,1 | 25,1 | 3,0 |
| KT (30) | 30,0 | 27,0 | 30,1 | 27,1 | 3,0 |
| KT 32 | 32,0 | 29,0 | 32,1 | 29,1 | 3,0 |
| KT (36) | 36,0 | 33,0 | 36,1 | 33,1 | 3,0 |
| KT 40 | 40,0 | 37,0 | 40,1 | 37,1 | 3,0 |
| KT (45) | 45,0 | 41,0 | 45,1 | 41,1 | 4,0 |
| KT 50 | 50,0 | 46,0 | 50,1 | 46,1 | 4,0 |
